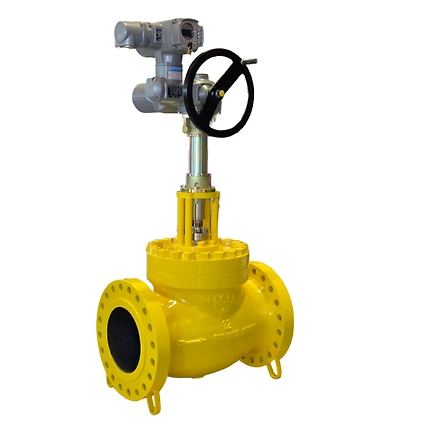

Samarth Irrigation is a premier dealer, supplier and exporter of superior quality industrial Globe Valves. Samarth Irrigation is a reputed name in valves for isolation, control, and flow reversal applications.
Samarth Irrigation Globe Valves are manufactured to BS 1873 and tested to API Std. 598.
These valves are used where throttling or both throttling and shut-off are required.
These are widely used in critical industrial applications like steam, utility, and process pipelines.
Our expertise extends to the manufacturing of Globe Valves. Recognized as a leading Globe valve Manufacturer, our products stand out for their precision and performance. We also cater to Globe valve Dealers and Globe valve Stockists with our extensive range. As a trusted Globe valve Exporter, we guarantee timely deliveries and unmatched quality.
Material of Construction:
From bar stock in carbon steel or stainless steel (304, 316, 304L, 316L. 321) Hastelloy B & C & Alloy 20 for sizes 15mm to 50mm.
Castings in carbon steel to ASTM A216 Gr. WCB, WCC, LCB, LCC.
Casting in stainless steel to ASTM A 351 Gr. CF8/CF8M/C 8C/CF3/CF3M Alloy 20. Hastelloy B & C.
Castings in C.I. to I.S. 210 Gr. FG200/220/260.
Castings in Alloy Steel to ASTM A 217 C5, WC6, WC9, WC12.
Design Standard: BS-1873 / ASME B 16.34
Face To Face Dimensions: ASME B 16.10
Size Range: 15mm to 500 mm
Pressure Rating: 150/300/600/900/1500/2500 class and ND-10, ND-16, ND-25, ND-40, ND-64
Ends: Screwed to BSP/BSPT/NPT, Flanged to ASME B16.5, Socket weld to ASME B 16.11, Buttweld to ASME B 16.25
Features:
✔️ Outside screw rising stem rising handwheel construction threads are away from fluids and easy to lubricate.
✔️ Body and bonnet made from high quality casting with liberal sections.
✔️ Seat ring screwed into the body are replaceable.
✔️ Back seat ring features facilitate repacking of the stuffing box on line with valve in fully open position.
✔️ Swinging eye bolts facilitate easy access to the stuffing box.
✔️ Plug type disc designed to give leak tight seat ring over a long period of in-built wear life.
✔️ Satellite seat ring and disc can also be offered on special request.
✔️ The valves of higher pressure and bigger sizes are provided with thrust bearings and also with gear drive arrangements and flange also can be offered for different standards.
